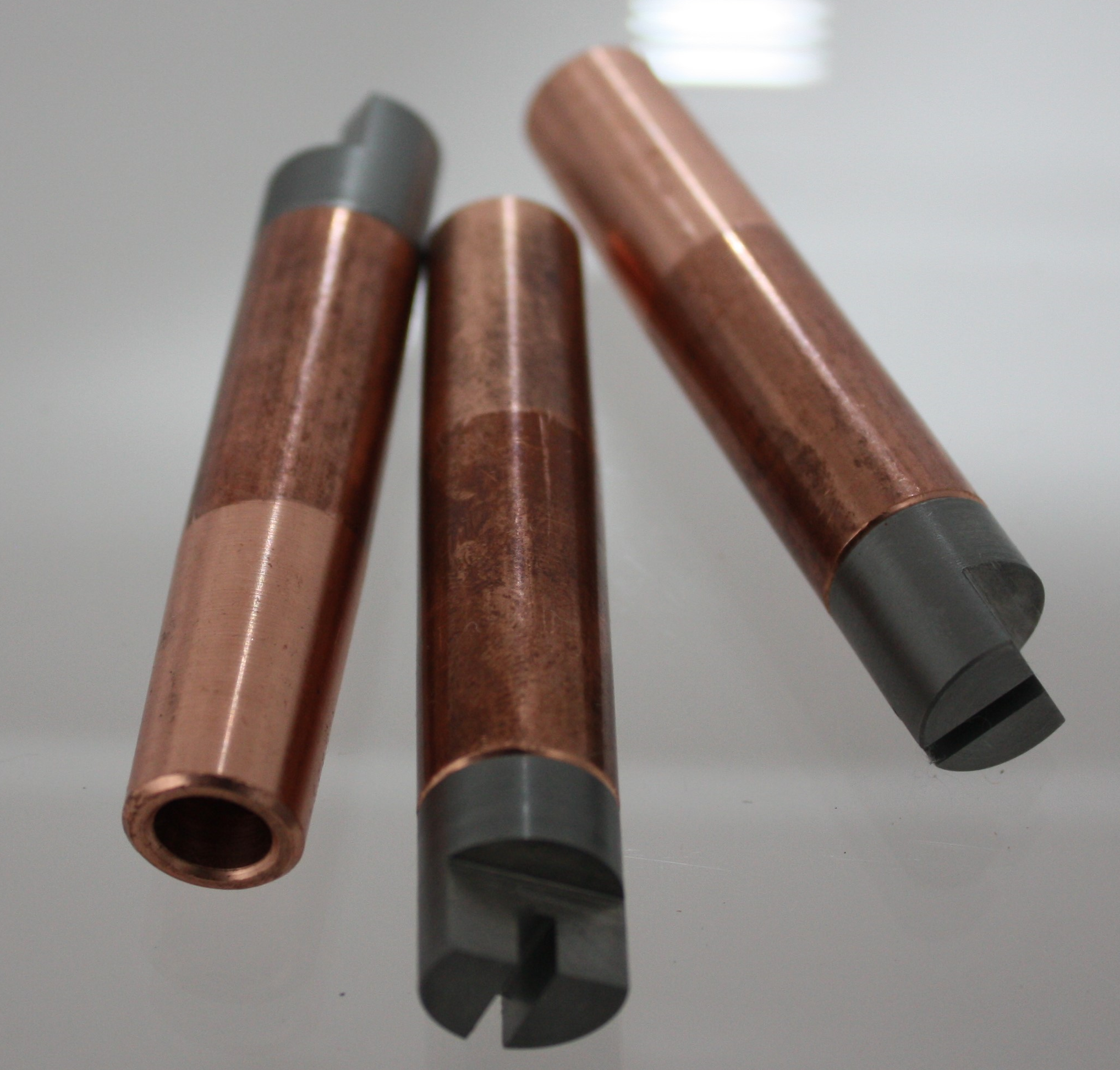

TUNGSTEN RWMA CLASS 13

product image
left arrow
thumbnail images thumbnail images
right arrow

Tungsten is extremely hard and has low ductility. It cannot be machined with cutting tools but can be ground to required contours. It does not alloy with nonferrous materials. Tungsten has the highest melting point (3,422 ºC, 6,192 ºF) of all the metals. Suited for cross wire welding of copper and brass, resistance brazing and some upsetting also welding of braided copper wire to other materials.

Item Name: Tungsten RWMA Class 13
Shape: Bar
Discs
Inserts
Plate
Rod
RWMA (Resistance Welding Manufacturing Alliance) Class: Class 13
Principal Element: W
Minimum Hardness Rockwell (up to 1" dia.): HRA 69
Minimum Electrical Conductivity (% IACS Min): 30
ISO Certification: 9001:2015 (Registration # 10002745 QM15 Valid until 2021-08-21)
Reports: Certification of Compliance
Chemical Analysis
Final Inspection
Material Test Reports
Mechanical and Physical Testing: Elongation
Grain Size
Hardness
Tensile
Yield
Nondestructive Testing: Chemical Analysis
Conductivity
Liquid Penetrant
Ultrasonic
X-Ray
Alloy Applications Cross Reference Chart C15000 C18150 C18000 C18200 C17510 C17200 C15760
Axial Conductors X
Back-up Electrodes X X X X X X X
Bushings X X X X X
Caps & Shank X X X X X X X
Casting Wheels X X   X
Casting Wheels and Dam Blocks     X   X X
Centrifugal Casting Mold X X X X
Circuit Breaker Parts X X   X     X
Collector Connector X X   X
Collector Housing X X   X
Connector Bar X X   X
Connectors X X X X X   X
Connection Lead Bar X X   X
Continuous Casting Molds X X X X X X
Cross Wire Welding Electrodes & Components X X X X X X X
Damper Ring/Finger X X X X
Dies & Fixtures X X X X X X
Die Casting Pistons     X   X X
Die Casting Plunger Tips     X   X X
Electrode Holders & Adaptors X X X X X X
Electrical & Mechanical Power Components X X X X X X X
Flash & Butt Welding Dies X X X X X X X
Flexible Connector X X   X
Heat Flux Components X X X X X   X
Injection Blow Molds & Dies   X X X X X
Joining Components X   X   X X X
Lead Conductor Bar X X   X
Motor End Rings X X X X X
Neutral Bus Bar X X   X
Non-Sparking Applications   X X X X X
Nut & Stud Welding Electrodes X X X X X X
Performance Engine Components     X   X X
Permanent Molds     X   X X X
Power Generation Products X X X X
Power Semiconductor Bases X X   X
Resistance Welding Electrodes X X X X X X
Rotor Coil Bar X X   X
Seam Weld Wheels X X X X X X
Series Loop Segment X X   X
Shafts X X X X X X
Slip Rings X X   X
Slot Wedge X X X X
Snap Rings X X   X
Special Nipple X X   X
Terminal Box Connectors X X   X
Threaded Electrodes X X X X X X
Transmission Devices X X   X     X
Water Clip X X   X
Wear Plates           X
Welding Arms X X X X X X
Welding Blocks X   X   X X
Welding Connectors X X X X X X
Welding Platens X X X X X X
