COPPER TUNGSTEN RWMA Class 11

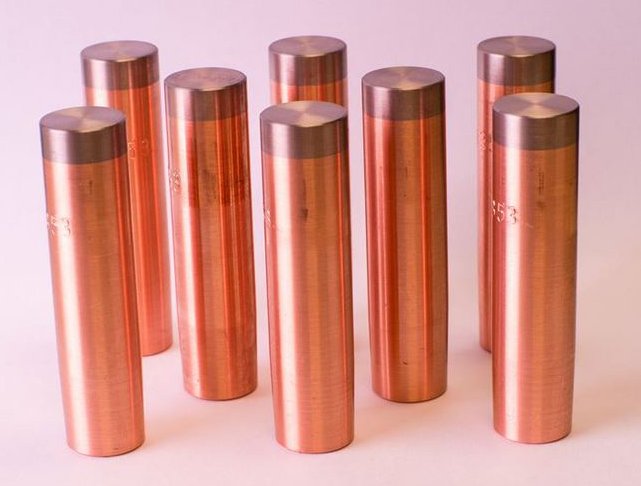

product image
left arrow
thumbnail images thumbnail images
right arrow

The Tungsten - Copper combination produces a dense, hard metal of superior wear resistance and strength at elevated temperatures. In addition, it possesses good thermal and electrical conductivity. Suited for projection welding electrodes, electro-forming and electro-forging electrodes facings for upsetting of studs and rivets, cross-wire welding of large diameter wire and rod, flash and butt welding electrodes, spot welding electrodes, light upsetting and seam welding bushings. Harder than Class 10 and used where moderate pressure is required.

Item Name: Copper Tungsten, RWMA Class 11, ASTM B702 C1D
Amount of Tungsten: 75 %
Amount of Copper: 25 %
Shape: Bar
Discs
Inserts
Plate
Rod
RWMA (Resistance Welding Manufacturing Alliance) Class: Class 11
Principal Element: Cu, W
Minimum Hardness Rockwell (up to 1" dia.): HRB 94
Minimum Electrical Conductivity (% IACS Min): 40
Alloy Applications Cross Reference Chart C15000 C18150 C18000 C18200 C17510 C17200 C15760
Axial Conductors X
Back-up Electrodes X X X X X X X
Bushings X X X X X
Caps & Shank X X X X X X X
Casting Wheels X X   X
Casting Wheels and Dam Blocks     X   X X
Centrifugal Casting Mold X X X X
Circuit Breaker Parts X X   X     X
Collector Connector X X   X
Collector Housing X X   X
Connector Bar X X   X
Connectors X X X X X   X
Connection Lead Bar X X   X
Continuous Casting Molds X X X X X X
Cross Wire Welding Electrodes & Components X X X X X X X
Damper Ring/Finger X X X X
Dies & Fixtures X X X X X X
Die Casting Pistons     X   X X
Die Casting Plunger Tips     X   X X
Electrode Holders & Adaptors X X X X X X
Electrical & Mechanical Power Components X X X X X X X
Flash & Butt Welding Dies X X X X X X X
Flexible Connector X X   X
Heat Flux Components X X X X X   X
Injection Blow Molds & Dies   X X X X X
Joining Components X   X   X X X
Lead Conductor Bar X X   X
Motor End Rings X X X X X
Neutral Bus Bar X X   X
Non-Sparking Applications   X X X X X
Nut & Stud Welding Electrodes X X X X X X
Performance Engine Components     X   X X
Permanent Molds     X   X X X
Power Generation Products X X X X
Power Semiconductor Bases X X   X
Resistance Welding Electrodes X X X X X X
Rotor Coil Bar X X   X
Seam Weld Wheels X X X X X X
Series Loop Segment X X   X
Shafts X X X X X X
Slip Rings X X   X
Slot Wedge X X X X
Snap Rings X X   X
Special Nipple X X   X
Terminal Box Connectors X X   X
Threaded Electrodes X X X X X X
Transmission Devices X X   X     X
Water Clip X X   X
Wear Plates           X
Welding Arms X X X X X X
Welding Blocks X   X   X X
Welding Connectors X X X X X X
Welding Platens X X X X X X
