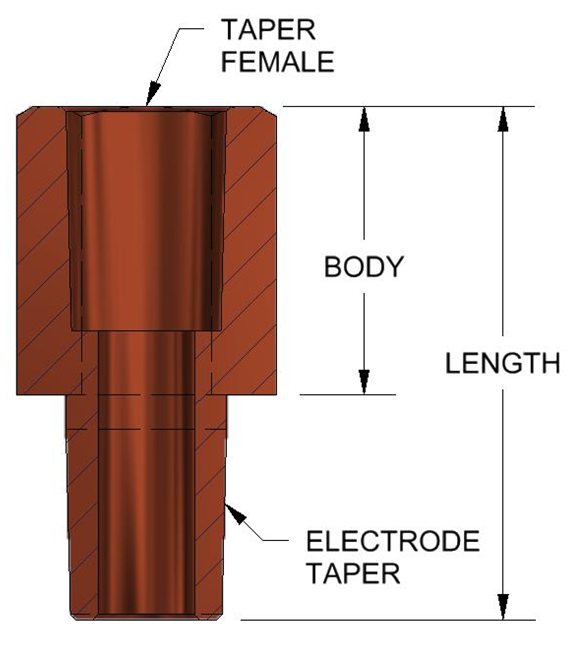

Taper to Taper Adaptors

product image
left arrow
thumbnail images
right arrow

Cadi manufactures a wide variety of electrode adaptors for most applications.



Adaptors are designed to fit standard tip holders as well as barrel holders on multi-gun welders.



In addition to the NPT threads 1/2-14 and 5/8-14, we also have 3/4-14 NPT threaded adaptors available in many of the same lengths.



Cadi also manufactures 1-12 straight thread adaptors in two different configurations; one with a 3/8” tall hex, and the other with an 11/16” tall hex.  All straight thread adaptors are supplied with the correct o-ring.



Standard material for Cadi electrode adaptors is RWMA Class 2.  Class 1 and Class 3 are available as an option.
