STUD & NUT WELDING ELECTRODES

product image
left arrow
thumbnail images thumbnail images thumbnail images
right arrow

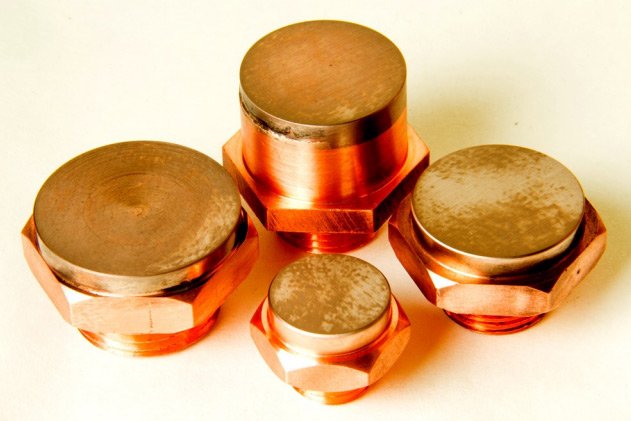

Cadi manufactures the highest quality stud and nut electrodes available. Electrodes are available in RWMA Classes 1, 2, 3, and other Copper Alloys and can be faced with copper-tungsten, molybdenum, tungsten and other refractory metals. Hexagon, round with wrench flat, and special shapes and sizes are available.


GH Head

Size

Head Height

Nut or Stud

Face Diameter

Hole Diameter



Group 2 for Projection Ring Dia. of 7/8 or less

Group 3 for Projection Ring Dia. of 1-1/4 or less

Group 4 for Projection Ring Dia. of 1-1/2 or less

5 for 1/2”

6 for 5/8”

N= Nut

S= Stud

08 = 7/8”

12 = 1-1/4”

15 = 1-1/2”

Hole Diameter =

Stud diameter +.010 PIN diameter +.002

Example:  GH

2

5

S

08

323 (hole diameter for 5/16” stud)
