30 Degree Offset Electrodes

product image
left arrow
thumbnail images thumbnail images
right arrow

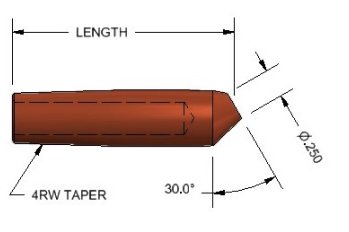

RWMA Class 2 is the standard material used, however other alloys are available. These electrodes are for use with welder arms having an angled hole. This allows for extra reach into the parts being welded.





PART NUMBER

TAPER

LENGTH

C-218-2

4RW

2”

C-218-3

4RW

3”

C-218-4

4RW

4”

C-219-2

5RW

2”

C-219-3

5RW

3”

C-219-4

5RW

4”
