PADDLE TIP HOLDERS AND SOCKET TIPS

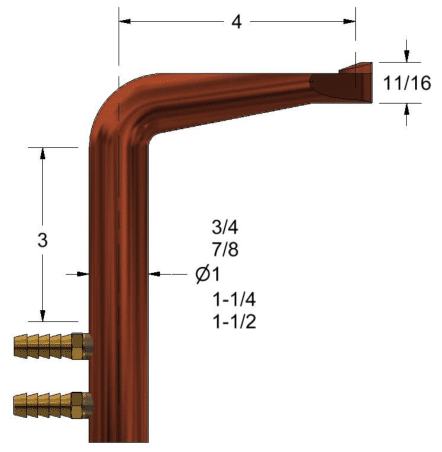

Paddle tip holders accept the socket tips above. They are useful for reaching welds with limited access. With a 4”
offset and low head height, they can reach areas not
accessible with standard offset holders. A bushing is used so the holder can fit 1-1/2” diameter holes.

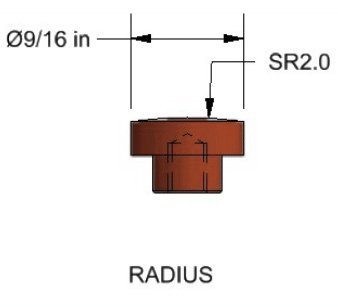

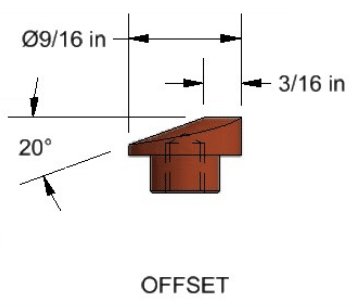

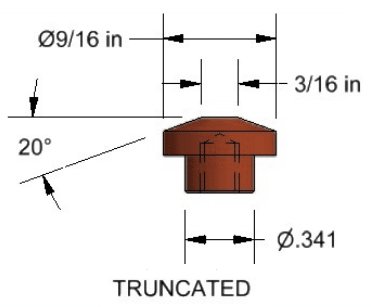

| Flat | Truncated | Offset | Radius | |
|
CLASS 2 |
C194 |
C195 |
C196 |
C197 |
|
CLASS 3 |
C194-CL3 |
C195-CL3 |
C196-CL3 |
C197-CL3 |
| SHANK DIA. | PART NUMBER | SHANK DIA. | PART NUMBER | ||||||
| 3/4 | CPH-75-4 | 1-1/4 | CPH-125-4 | ||||||
| 7/8 | CPH-88-4 | 1-1/2 | CPH-150-4 | ||||||
| 1 | CPH-100-4 | ||||||||
